20 Foot Above Grade Square Fiberglass Direct Burial Light Pole, 5 Inch Wide

Item #
  • Black Powder Coat
  • Bronze Powder Coat
  • Gray Powder Coat
  • White Powder Coat
  • Custom - Contact Us

Get A Free Quote
20 Foot Above Grade Square Fiberglass Direct Burial Light Pole, 5 Inch Width. Item Number: 20SQ5FDB
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Material: Our commercial-grade square fiberglass poles are constructed of thermoset polyester resin containing "E" type fiberglass. The surface of the shaft is smooth and consists of a saturated polyester surfacing veil of 18-20 mils minimum thickness and a 10 mil resin layer. The resin is unsaturated polyester containing UV inhibitor and pigment throughout. 1.5 mil of urethane coating is applied to the surface of the pole shaft. The surfacing veil and structural fibers are saturated in a singular process with the same resin, ensuring molecular bonding between structural layers and the protective layer.

  • Lightweight for easy installation - 70% less heavy than steel.
  • Does not rust or corrode.
  • Dent resistant.
  • Non-conductive for safety purposes.

Direct Burial: This pole is designed to be embedded directly in to the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 5 feet below grade. Overall pole length including the embedded portion is 25 feet.

Warranty: 10 Years

Availability: This item has an approximate production lead-time of 4 to 5 weeks.

Above grade height: 20 feet
Bury depth: 5 feet
Overall Shaft Length: 25 feet
Weight: 123 pounds

EPA Ratings (sq. ft.):
80 mph: 14.9
90 mph: 11.1
100 mph: 8.4
120 mph: 4.9

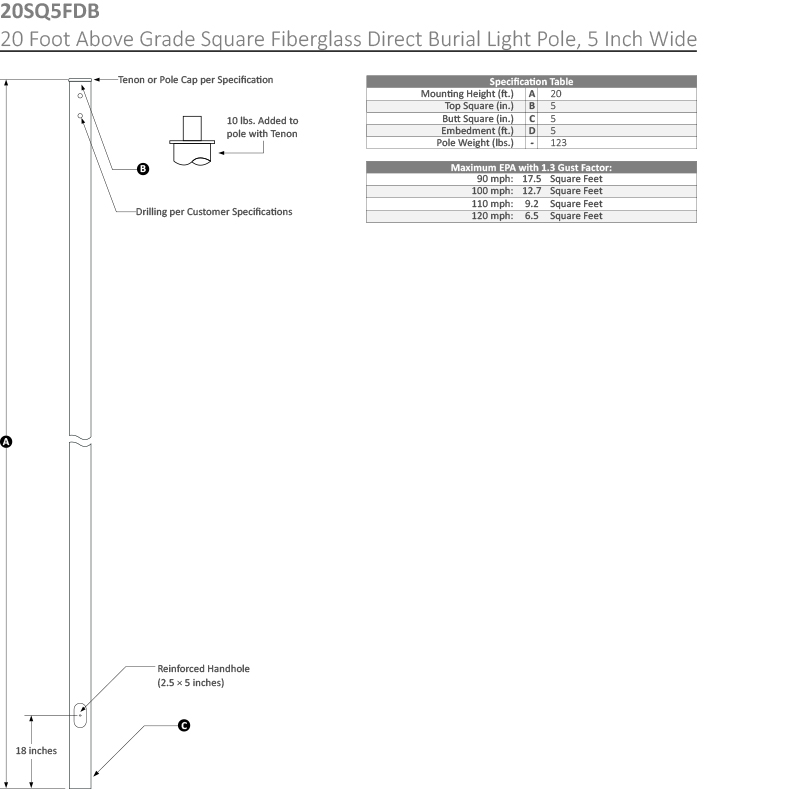

Dimensional Drawing:
