Item Number: 10052
Product Description
The bottom portion of this bracket is 2-1/2 inch in diameter (inside diameter) allowing it to slip fit over any 2-3/8” tenon regardless of the shape of the pole. Each tenon provided on top is 2-3/8” in outside diameter allowing any light fixture with a standard 2-3/8” slip fitter to slide over. If you require the bottom portion to fit over a 2-7/8” or 4” tenon, please contact one of our sales engineers so that we can provide you a quote for customization. This bracket is available with a standard Bronze finish however other powder coat finish options are available for you to select while ordering. Hot dip galvanizing is also available as a custom request.

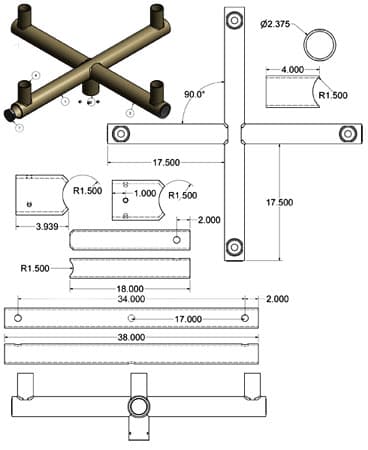

Dimensional Drawing
The bottom portion of this bracket is 2-1/2 inch in diameter (inside diameter) allowing it to slip fit over any 2-3/8” tenon regardless of the shape of the pole. Each tenon provided on top is 2-3/8” in outside diameter allowing any light fixture with a standard 2-3/8” slip fitter to slide over. If you require the bottom portion to fit over a 2-7/8” or 4” tenon, please contact one of our sales engineers so that we can provide you a quote for customization. This bracket is available with a standard Bronze finish however other powder coat finish options are available for you to select while ordering. Hot dip galvanizing is also available as a custom request.
Dimensional Drawing
