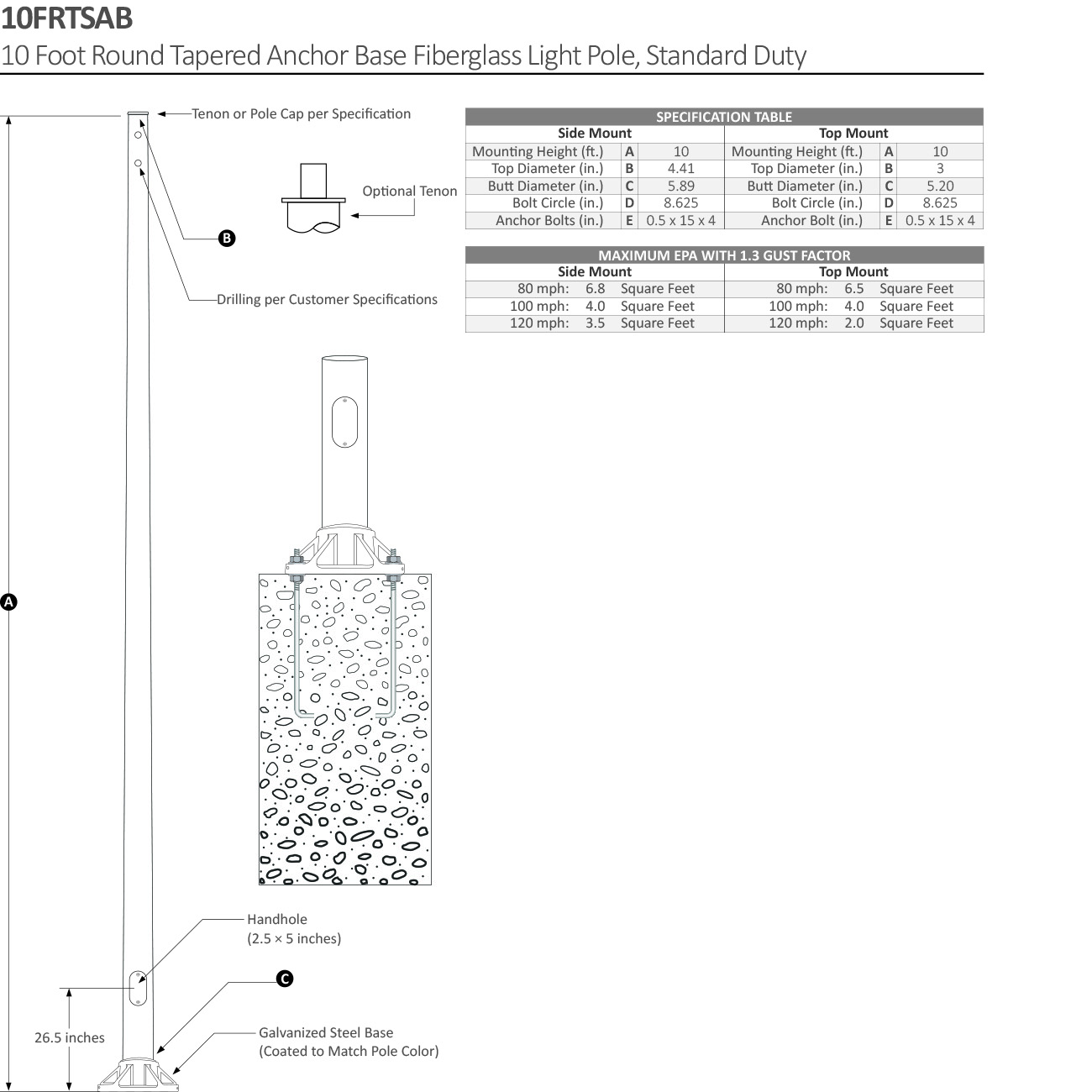

10 Foot Round Tapered Anchor Base Fiberglass Light Pole, Standard Duty

Item #
Due to global resin shortages, this item has an estimated lead time of 16-20 weeks.
  • Black (Standard)
  • Dark Bronze +$60
  • White +$60
  • Gray +$60

Get A Free Quote
Availability: This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.
Material: Our commercial grade, round tapered, anchor base fiberglass poles are constructed of thermoset polyester resin containing "E" type fiberglass. The surface of the shaft is smooth and consists of a saturated polyester surfacing veil of 18–20 mils minimum thickness and a 10 mil resin layer. The resin is unsaturated polyester containing UV inhibitor and pigment throughout. 1.5 mil of urethane coating is applied to the surface of the pole shaft. The surfacing veil and structural fibers are saturated in a singular process with the same resin, ensuring molecular bonding between structural layers and the protective layer.

Pole Configuration: Various pole top configurations are available ranging from tenons to multiple drill orientations. Standard tenons and drill orientations are included in cost. A handhole with a cover is also provided as a standard feature.

  • Lightweight for easy installation - 70% less heavy than steel
  • Does not rust or corrode
  • Dent resistant
  • Non-conductive for safety purposes
Anchor Base: This pole requires a concrete foundation. 1/2 inch x 15 inch x 4 inch galvanized steel anchor bolts are provided and are included in the price. Bolt circle diameter of this pole is: 8-5/8 inches. Base plate is cast aluminum and is permanently bonded to the pole shaft. A base cover is also provided to cover the anchor bolts after pole installation is complete.

Warranty: 10 Years

Mounting Height: 10 feet
Anchor Bolt Size: 1/2 inch x 15 inch x 4 inch
Bolt Circle: 8-5/8 inches

EPA Ratings (sq. ft.):
80 mph: 6.5
100 mph: 4.0
120 mph: 2.0
10 Foot
Anchor Base
Round Tapered
Standard Duty
Product Note:
Due to global resin shortages, this item has an estimated lead time of 16-20 weeks.
