30 Foot Round Tapered Anchor Base Fiberglass Light Pole, Heavy Duty

Item #
30FRTHAB
  • Black Powder Coat
  • Bronze Powder Coat
  • Gray Powder Coat
  • White Powder Coat
  • Custom - Contact Us
$987.00

Get A Free Quote
30 Foot Round Tapered Anchor Base Fiberglass Light Pole, Heavy Duty. Item Number: 30FRTHAB
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Material: Our commercial grade, round tapered, anchor base fiberglass poles are constructed of thermoset polyester resin containing "E" type fiberglass. The surface of the shaft is smooth and consists of a saturated polyester surfacing veil of 18–20 mils minimum thickness and a 10 mil resin layer. The resin is unsaturated polyester containing UV inhibitor and pigment throughout. 1.5 mil of urethane coating is applied to the surface of the pole shaft. The surfacing veil and structural fibers are saturated in a singular process with the same resin, ensuring molecular bonding between structural layers and the protective layer.

Pole Configuration: Various pole top configurations are available ranging from tenons to multiple drill orientations. Standard tenons and drill orientations are included in cost. A handhole with a cover is also provided as a standard feature.

Benefits:
  • Lightweight for easy installation - 70% less heavy than steel
  • Does not rust or corrode
  • Dent resistant
  • Non-conductive for safety purposes
Anchor Base: This pole requires a concrete foundation. 1 x 36 x 4 inch galvanized steel anchor bolts are provided and are included in the price. Bolt circle diameter of this pole is: 15-1/4 inches. Base plate is cast aluminum and is permanently bonded to the pole shaft. A base cover is also provided to cover the anchor bolts after pole installation is complete.

Warranty: 10 Years

Characteristics:
Mounting height: 30 feet
Anchor Bolt Size: 1 x 36 x4 inch
Bolt Circle: 15-1/4 inches

EPA Ratings (sq. ft.):
80 mph: 8.0
90 mph: 6.0
100 mph: 4.5
110 mph: 4.5
120 mph: 4.5
130 mph: 3.5
140 mph: 1.8

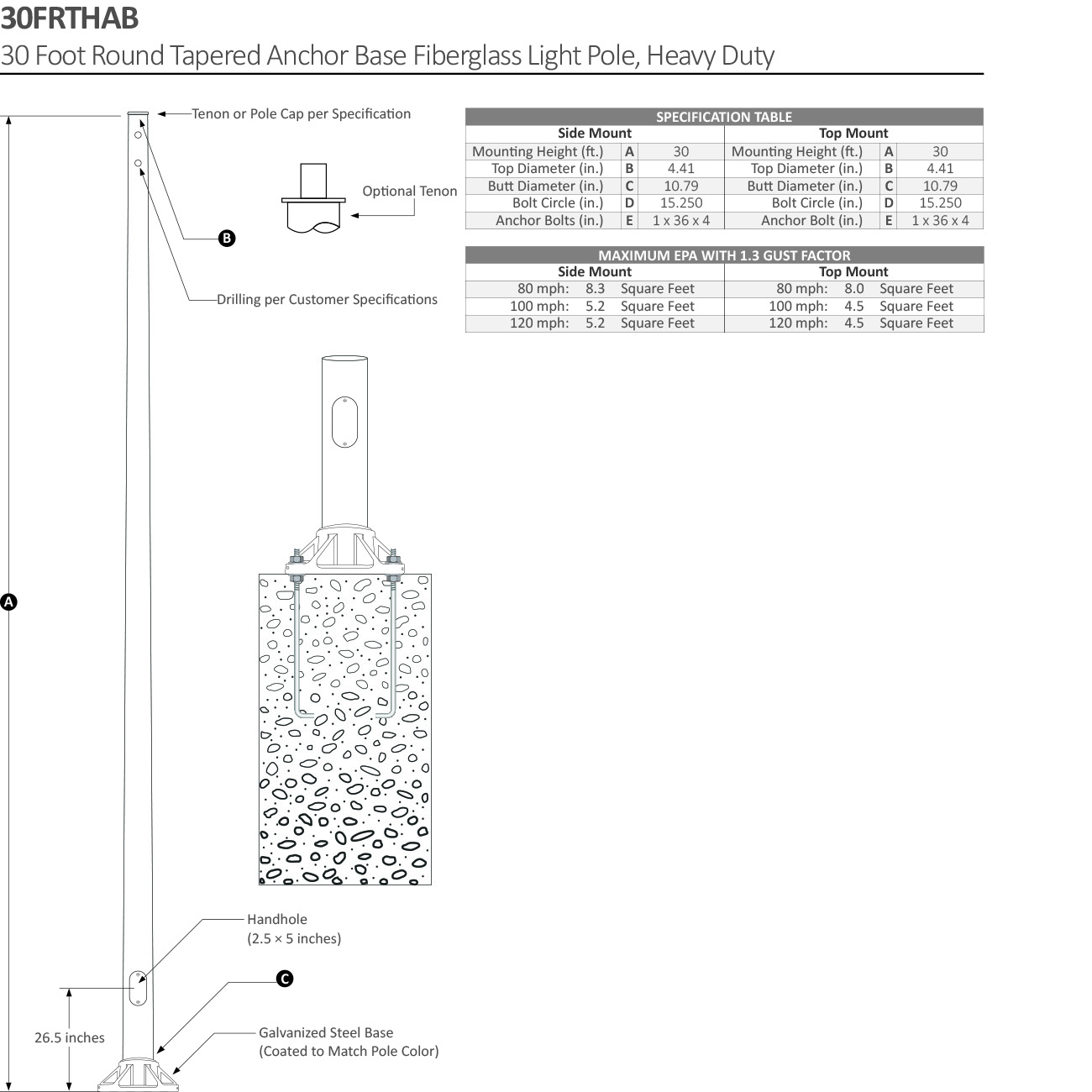

Dimensional Image
“30
