Item Number: LEDAT22
Product Description
Dimmable 2x2 architectural LED troffer is constructed with LM-80-rated LEDs making it a silent and flicker free solution for commercial applications. Center basket provides glare free indirect lighting. 0-10 volt dimming is provided.
Product Specifications
Recommended Dimming Controls
Dimensional Drawing
Dimmable 2x2 architectural LED troffer is constructed with LM-80-rated LEDs making it a silent and flicker free solution for commercial applications. Center basket provides glare free indirect lighting. 0-10 volt dimming is provided.
Product Specifications
- Color Temperature: 3500-5000 K
- Watts: 32
- Lumens: 3,300
- Efficacy: 103 lumens/watt
- Life Expectancy: 50,000 hours at L70 standards
- CRI: 85
- Voltage: 120-277
- Dimming: 0-10 volt dimming standard
- Dimensions: 23 5/8 inch length, 23 5/8 inch width and 2 3/4 inch height
- Weight: 9 lbs.
- Operating Temperature: -20° to 130°F
- Humidity: 20-85% RH, non condensing
- RoHS Compliant: Yes
- Rating: Indoor use
- Certification: UL, ETL, DLC
- Warranty: 5 years
Recommended Dimming Controls
- Cooper DF10P
- Cooper SF10P
- Leviton DS710-10Z
- Leviton IP710-LFZ
- Lutron DVSCSTV
- Lutron DVSTV
- Lutron MS-Z101-V
- Lutron NTSTV-DV

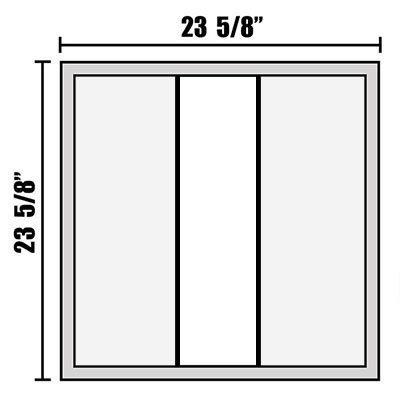

Dimensional Drawing
