Economy LED Acorn light fixture. 36 Watt. ItemNumber: EACLED38
Product Description
This outdoor LED acorn fixture is designed to fit over a 3 inch pole or tenon. The base slides over a 3 inch O.D. pole and is locked in place with 3 set screws. The globe is attached to the base assembly with an easy to use locking mechanism making replacement of the bulb or acorn very easy. The polycarbonate base assembly with the socket has a black finish. The acorn is made of acrylic material and has a translucent texture.
Product Specifications

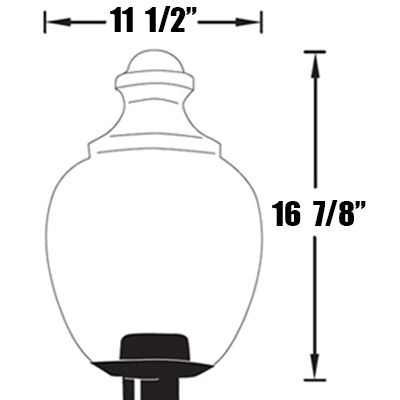

Dimensional Drawing

Instructional Video
This outdoor LED acorn fixture is designed to fit over a 3 inch pole or tenon. The base slides over a 3 inch O.D. pole and is locked in place with 3 set screws. The globe is attached to the base assembly with an easy to use locking mechanism making replacement of the bulb or acorn very easy. The polycarbonate base assembly with the socket has a black finish. The acorn is made of acrylic material and has a translucent texture.
Product Specifications
- Power: 36 watts
- Lumens: 5,400 lumens
- Voltage: 120-277 Volt AC
- Efficacy: 150 lumens/watt
- Life Expectancy: Up to 50,000 hours
- Power Factor: >99
- IR / UV: None
- Color Temperature: 4200 K
- CRI: >80
- Dimmable: Non-dimmable
- UL Listed: Damp location
- Width: 11 1/2 inch
- Overall Height: 16 7/8 inch
- EPA: 1.04
- Weight: 3.2 pounds
Dimensional Drawing

Instructional Video
