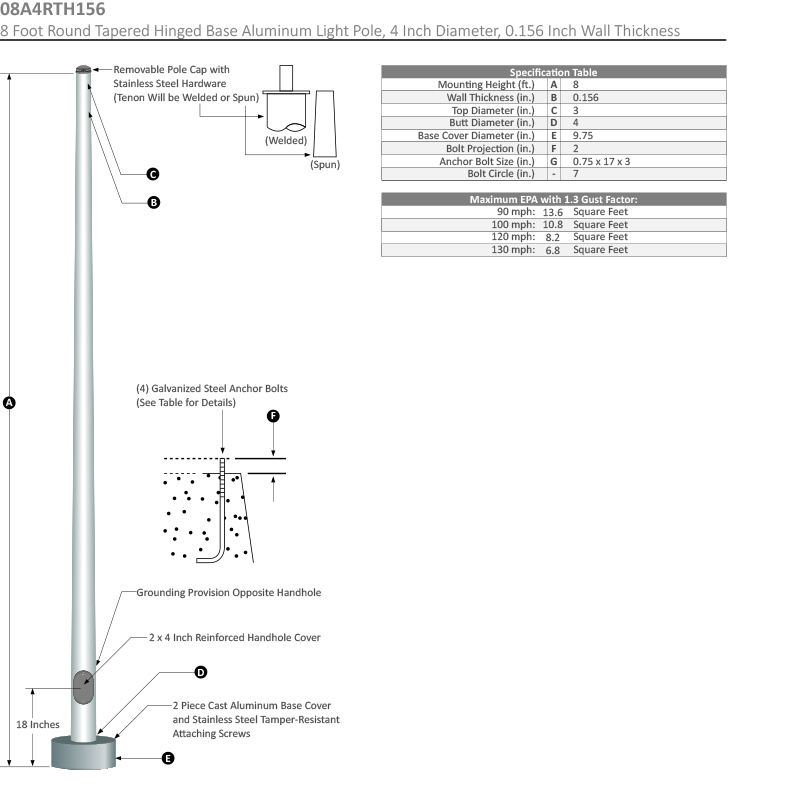

8 Foot Round Tapered Hinged Base Aluminum Light Pole, 4 Inch Diameter, 0.156 Inch Wall Thickness

Item #
08A4RTH156
  • Natural Aluminum Finish (Standard)
  • Dark Bronze Powder Coat +$90
  • Black Powder Coat +$90
  • White Powder Coat +$90
  • Gray Powder Coat +$90
$554.00

Get A Free Quote

Pole Top Options: A removable pole cap is provided if the pole is drilled for attaching light fixtures. The drill pattern and drill orientation needs to be provided by the customer unless Energy Light fixtures are used for the project. If tenon option is selected, a 2-3⁄8 inch diameter tenon with 4 inch length is provided.

Pole Shaft: The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.

Handhole: 2" X 4” size handhole with cover is located at 18 inches from the base. Ground lug is included.

Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. White, Black, Gray colors are provided at no extra charge. Other colors and custom color options are available at a surcharge.

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 1 Hex Nut, 1 Lock Washer and 1 Flat Washer. Energy Light, Inc. recommends leveling shims instead of leveling nuts. No grouting is required with leveling shims. Shims are available at a surcharge. An actual size paper anchor bolt template is provided.

Bolt Circle: 7".

Hinged Base: This aluminum light pole has a unique hinge-base design. The bottom portion is mounted on a concrete foundation with anchor bolts. Aluminum 2-piece cover is included. Cover is secured to bottom base with the use of 4 Stainless Steel Tamper-Resistant Screws (also provided).

Other Options: The following options are available: Vibration damper, custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handhole and UL compliant handholes.

Warranty: 10 Years.

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.



Maximum EPA with 1.3 Gust Factor (ft²) Pole Weight (lbs)
90 mph 100 mph 120 mph 130 mph
13.6 10.8 8.2 6.8 22
POLE HEIGHT:
8 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round Tapered
WIDTH OR DIAMETER:
4 Inch
WALL THICKNESS:
0.156 Inch
HINGED:
Yes
made_in_usa:
true
10_year_warranty:
true
faq_category:
aluminum-light-poles
