Product Description:
This LED high bay is a must have upgrade for locations with metal halide or fluorescent high bay fixtures. Warehouses, factories and supermarkets will benefit from the soft and uniform lighting. Easy to install and operate, this versatile 220 watt LED high bay fixture has several mounting options available.
Features:

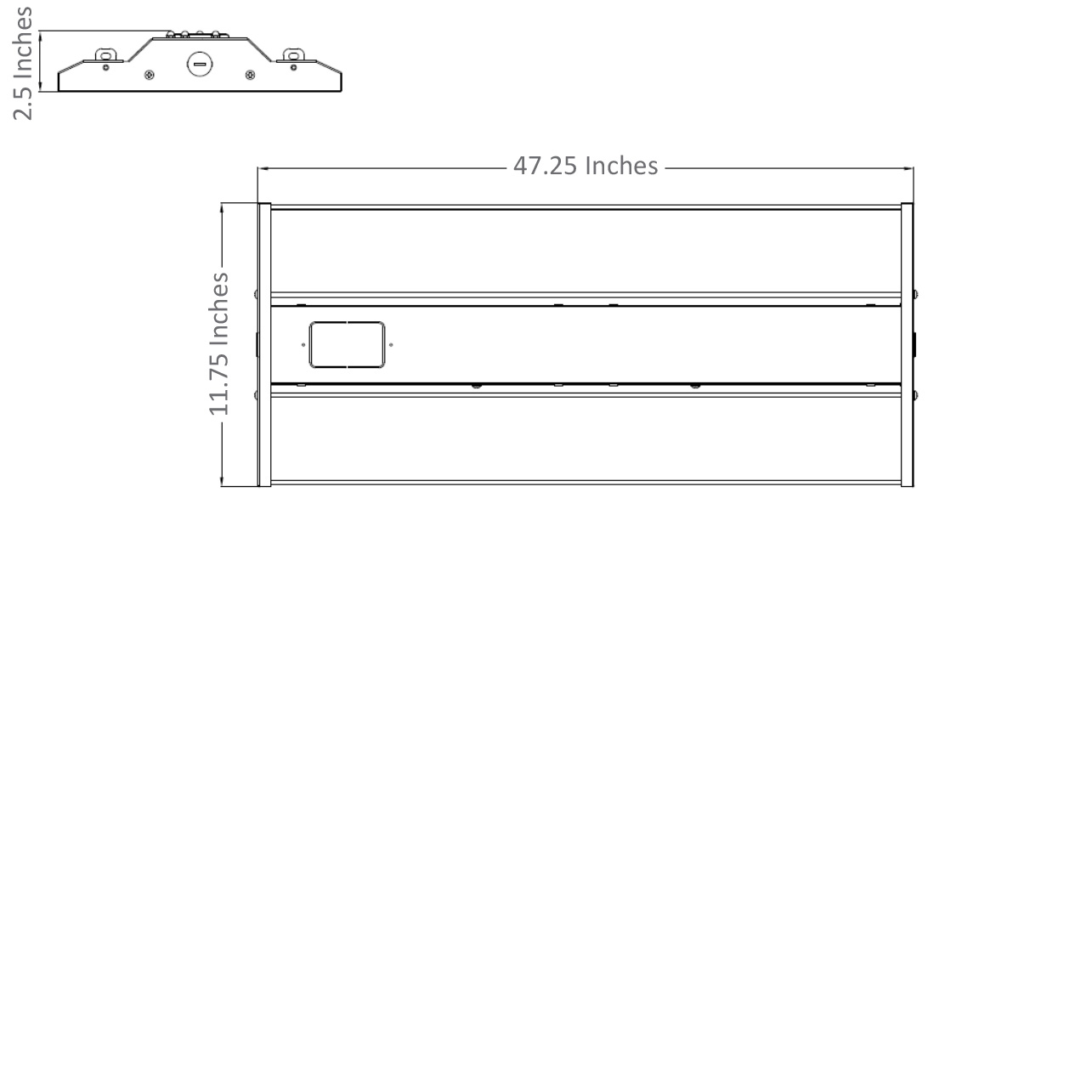

Dimensional Drawing:

Features:
- Replaces up to 1,000 Watt metal halide or HPS
- Dimmable with 1-10 Volt
- High performance 139 lumens per watt
- 5 year warranty
- Perfect for ceiling heights ranging from 20 to 30 feet
- Easy to install and operate
- Instant start means no flickering and no humming
Input Voltage | 120-277V | Color Temperature | 5000K | CRI | >80 |
---|---|---|---|---|---|
Lumens | 30,500 | Power | 220 Watts | Lumens Per Watt | 139 |
Amps | 1.84 - 120V / 0.80 - 277V | Dimmable | Yes 1-10V | Power Factor | >0.9 |
DLC Listed | Yes, Premium | UL Rated | Yes | Warranty | 5 Year |
Dimensions (inches) | 23.6 x 10.3 x 2.2 | Color | White | Type | LED High Bay |
