Linear LED High Bay, 90 Watt, 12,600 Lumens

Item #

Get A Free Quote
This LED high bay fixture is suggested for heights ranging from 15 to 30 feet. With no UV or IR in the beam, this 90 watt LED high bay gives off a uniform light. Item Number: HBL90
Highlights: Five-Year Warranty “Dimmable Design Lights Consortium Premium UL Listed

Product Description: This LED high bay is a must have upgrade for environments with metal halide or fluorescent high bay fixtures. Small warehouses, factories and supermarkets will benefit from the uniform lighting. Easy to install and operate, this versatile 90 watt LED high bay fixture has several mounting options available.
  • Replaces up to 400 Watt metal halide or HPS
  • Dimmable with 1-10 Volt
  • High performance 143 lumens per watt
  • 5 year warranty
  • Perfect for ceiling heights ranging from 12 to 20 feet
  • Easy to install and operate
  • Instant start means no flickering and no humming
Product Specifications:
Input Voltage 120-277V Color Temperature 5000K CRI >80
Lumens 12,600 Power 90 Watts Lumens Per Watt 140
Amps 0.75 - 120V / 0.32 - 277V Dimmable Yes 1-10V Power Factor >0.9
DLC Listed Yes, Premium UL Rated Yes Warranty 5 Year
Dimensions (inches) 23.6 x 10.3 x 2.2 Color White Type LED High Bay

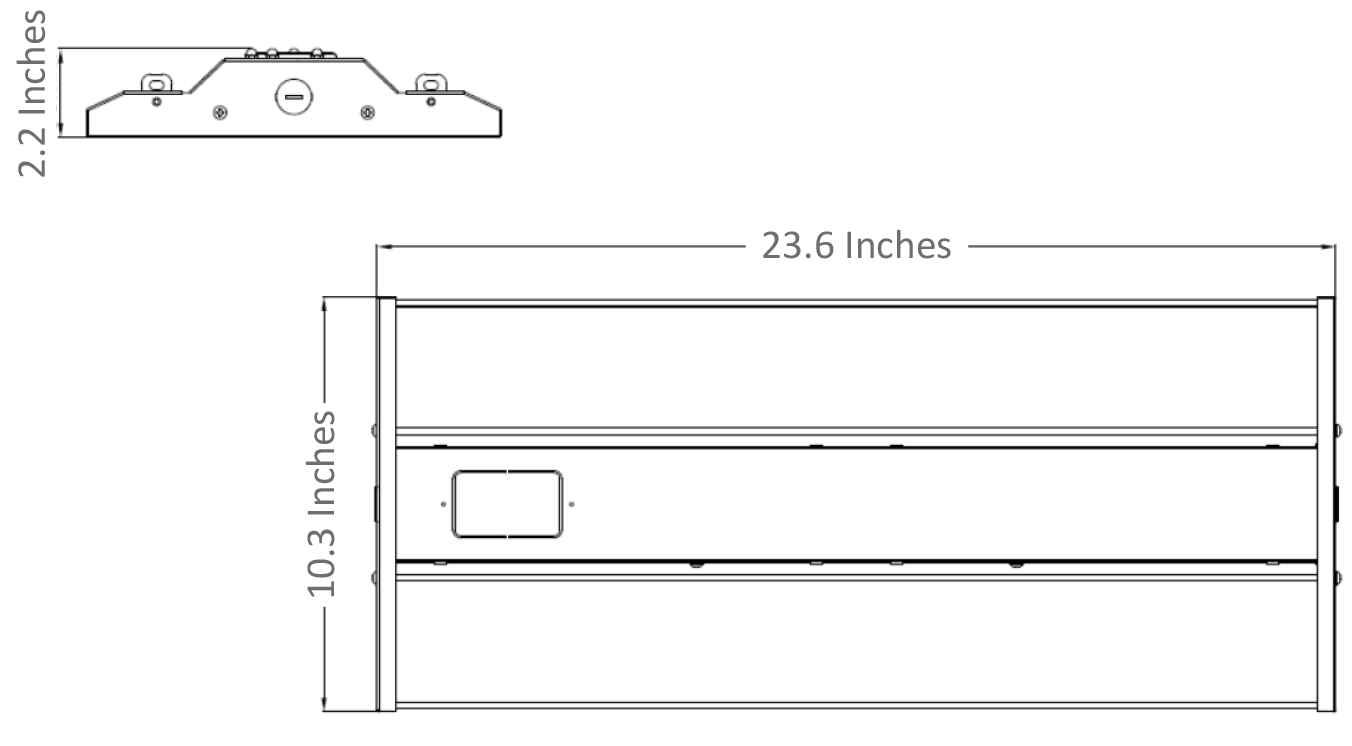

Dimensional Drawing:
Linear LED High Bay, 90 Watt, 12,600 Lumens-Dimensional Drawing
