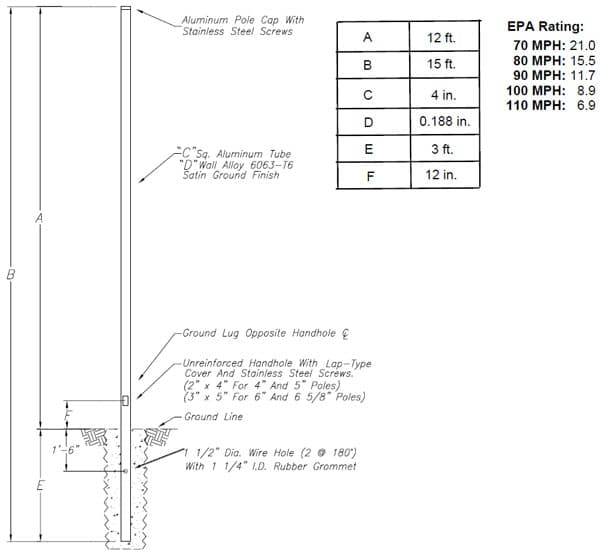

Square Direct Burial Aluminum Light Pole, 12 Foot Above Grade, 4 Inch Width, 0.188 Inch Wall Thickness. Item Number: 12A4SS188DB
Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.
Pole Shaft: 12 ft. height above ground, 4 in. square straight aluminum with 0.188 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 3 ft. Wire access is provided 18 in. below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 10 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
POLE WIND RATING (EPA)
with 1.3 Gust Factor
|POLE LENGTH AND WEIGHT|
|70 mph||80 mph||90 mph||100 mph||110 mph||Embedment (ft)||Total Length (ft)||Weight (lbs)|
- POLE HEIGHT:
- 12 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.188 Inch
