20 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 6 Inch Diameter, 0.156 Inch Wall Thickness

Item #
20A6RT1561D4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat
  • Black Powder Coat
  • White Powder Coat
  • Gray Powder Coat
  • Green Powder Coat
$984.00

Request a Product Quote
20 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 6 Inch Diameter, 0.156 Inch Wall Thickness. Item Number: 20A6RT1561D4
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

  • Mounting height: 20 ft.
  • Wall thickness: .156 in.
  • Butt diameter: 6 in.
  • Top diameter: 4.5 in.
  • Base diameter: 9.75 in.
  • Bolt circle: 9-10 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 81 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 4 ft.
Maximum EPA:
  • 70 MPH: 11.2
  • 80 MPH:  8.0
  • 90 MPH:  5.7
  • 100 MPH: 4.4
  • 110 MPH: 3.4

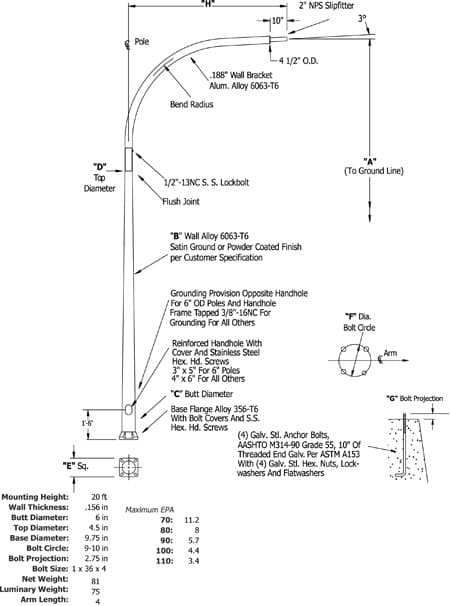

Dimensional Drawing:
