This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

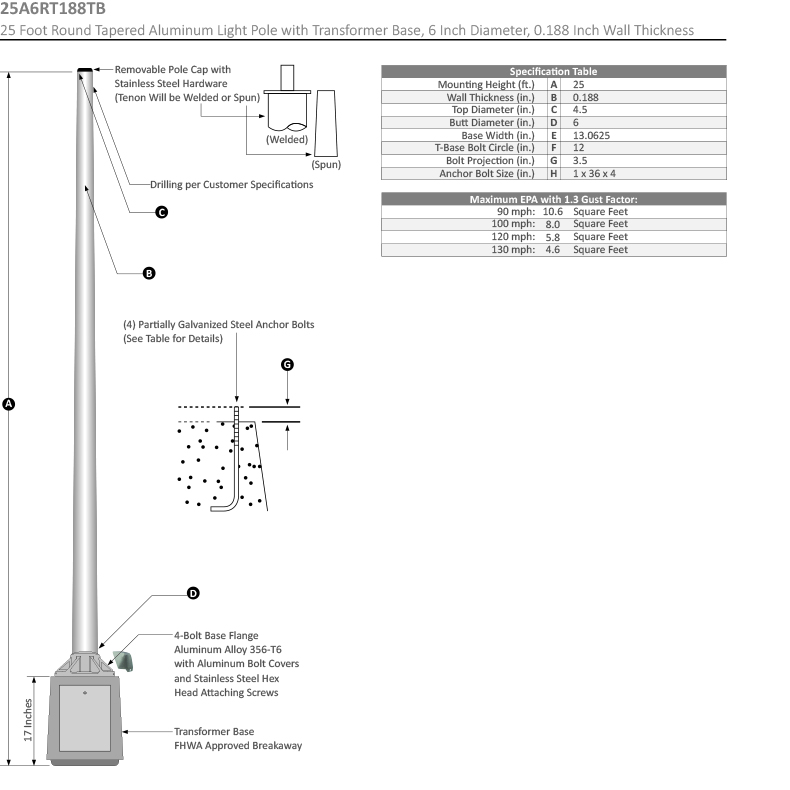

This round aluminum tapered light pole comes complete with a transformer base specifically designed to support this pole. The pole shaft is made from aluminum alloy 6063-T6, is 25 feet high with a wall thickness of 0.188 inches and maximum EPA rating of 3.5 at 110 mph. The butt diameter is 6 inches and tapers to 4.5 inches in diameter at the top. To see the full specifications for our 25 foot 6 inch round tapered aluminum light pole with T-base - 0.188 inch, please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.
The transformer base is made of cast aluminum and includes the access door, screw and bearing washers. Since the transformer base and the pole come as a kit, they fit perfectly and are painted at the same time to match your color choice to deliver an integrated look. Anchor Bolts and Handhole Covers
This light pole includes anchor bolts made of galvanized steel (Grade 55 meeting AASHTO M314-90 standard) with a bolt circle diameter of 12 inches. A base flange with bolt covers, reinforced handhole with cover, and stainless steel hex-head screws are also included. For your convenience, anchor bolts can be pre-shipped for a nominal surcharge.
Pole Drilling Options
We can drill our aluminum light poles to your specifications at no extra charge. We offer such a large variety of drilling options that should you need anything other than our standard drill template shown in the images above and different drill orientation (also shown above), please contact one of our engineers at 1-800-443-8254 or e-mail them at: [email protected].
Our standard aluminum light pole color is Natural Aluminum finish; however, we provide 5 other colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.
We offer an extensive list of OEM accessories for our aluminum light poles ranging from GFI receptacle outlets to vibration dampeners. In addition, we do not charge extra for cutting our poles to custom lengths in case what we offer requires customization.
10 Year Warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 10 year warranty.
- POLE HEIGHT:
- 25 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- Round Tapered
- WIDTH OR DIAMETER:
- 6 Inch
- WALL THICKNESS:
- 0.188 Inch
