30 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 7 Inch Diameter, 0.188 Inch Wall Thickness

Item #
30A7RT1881D4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat
  • Black Powder Coat
  • White Powder Coat
  • Gray Powder Coat
  • Green Powder Coat
$1,354.00

Get A Free Quote
30 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 7 Inch Diameter, 0.188 Inch Wall Thickness. Item Number: 30A7RT1881D4
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

  • Mounting height: 30 ft.
  • Wall thickness: .188 in.
  • Butt diameter: 7 in.
  • Top diameter: 4.5 in.
  • Base diameter: 10.5 in.
  • Bolt circle: 10-11 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 135 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 4 ft.
Maximum EPA:
  • 70 MPH: 9.6
  • 80 MPH:  6.4
  • 90 MPH:  4.3
  • 100 MPH: 3.1
  • 110 MPH: 2.3

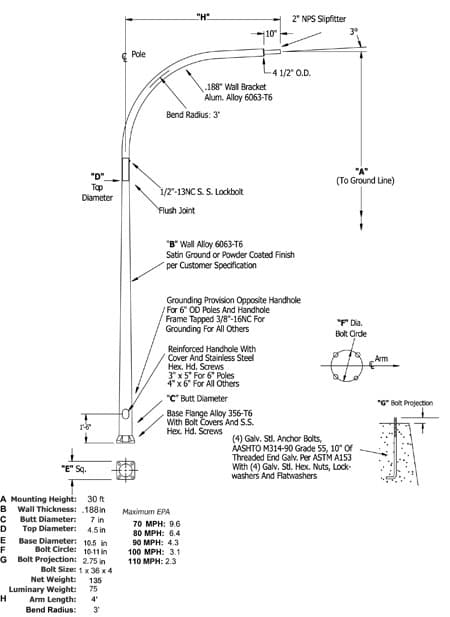

Dimensional Drawing:
