60 Watt LED Parking Garage Light with Built-in Occupancy Sensor

Item #
PG60
$189.00

Get A Free Quote
This 60 watt low profile parking garage light is ideal for parking garages and canopies. The LED rating is 65,000 hours of operation with a minimum of 90 percent of the initial lumen output (L90). This luminaire is easy to install for either surface or pendant mounting. Item number: PG60
Highlights: Design Lights Consortium Premium UL Listed “Wet “Dimmable Five-Year Warranty
Product Description: The PG Series LED garage light is ideal for areas that require low profile lighting such as parking garages and canopies. This fixture can be surface or pendant mounted and includes removable, threaded plugs for side attachment of 1/2 inch rigid electrical conduit. The die cast aluminum housing and polycarbonate lens make this light durable for many years. The high efficacy and long lasting LED lights offer energy and maintenance cost savings over traditional canopy lights with HID, incandescent or fluorescent lamps. Features:
  • Long lasting LED lights that have a minimum of 65,000 hours of operation
  • Lens: High light transmittance polycarbonate, anti-UV fire resistant
  • Die cast aluminum housing with white powder coat finish
  • Easy installation
  • Ideal for parking areas, underpasses, building entrances, loading docks, walkways and recreation areas
  • Standard 1-10vdc dimming capability
  • Dimming sensor can be easily disabled
  • 5 year warranty
Mounting Options:
  • Standard junction box mounting plate
  • Surface mount luminaire to canopy by removing the lens, drilling holes in the housing and screwing the luminaire to the canopy
  • Pendant mount by using threaded hole on back of luminaire with 3/4 inch rigid electrical conduit
Product Specifications:
Lumens 7,670 Input Voltage 120-277V Driver 50/60Hz
Color Temperature 4000K CRI 80 Color White
DLC Listed Yes UL Rated Yes IP Rating IP65
Power 60 Watts Power Factor 0.90 Lumens per Watt 128
Dimmable Yes Rated Hours 65,000 Hours – L90 Ambient Temperature -40° to 104°F
Warranty 5 Year Dimensions 11.4" diameter Type Parking Garage Light

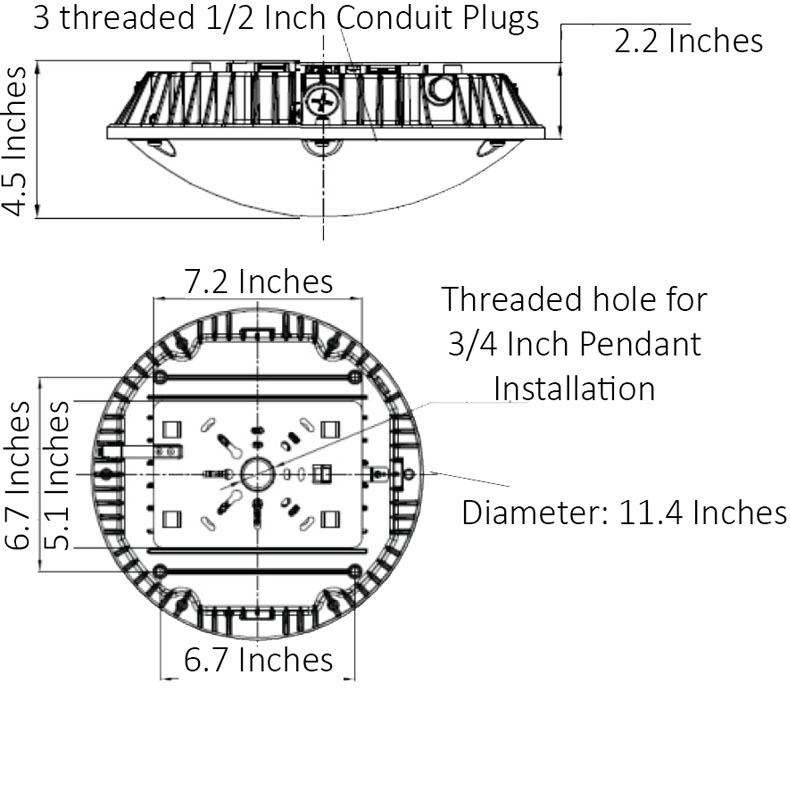

Dimensional Drawing:
62 Watt PG Light. Item #: PG60
