Product Description:
- Pole Top Options: A removable pole cap is provided. If tenon option is selected, a 2-3⁄8" or 3" diameter tenon with 4 inch length is provided.
- Pole Shaft: 20 ft. height above ground tapered aluminum shaft with 0.156" wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy.

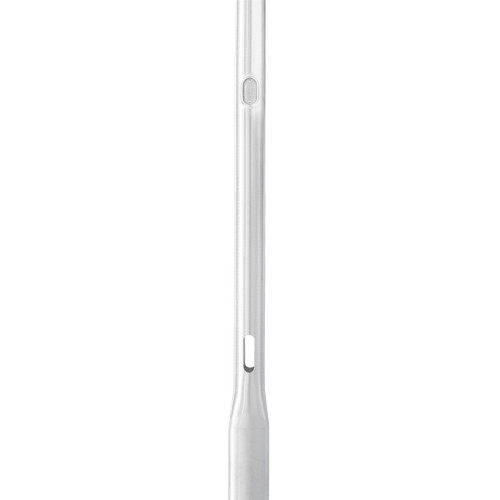

- Handhole: Reinforced 3"x5" handhole is located 18 inches above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
- Embedment: Embedment length is 5 ft. Wire accesses are provided 24" below ground line.
- Finish: Brushed natural aluminum.
- Warranty: 5 years.
- Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
- POLE HEIGHT:
- 20 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Round Tapered
- faq_category:
- aluminum-light-poles
- quick_shipping:
- true
- 5_year_warranty:
- true
- WIDTH OR DIAMETER:
- 6 Inch
- WALL THICKNESS:
- 0.156 Inch
- Product Note:
- Back in stock early March 2026.
