Square Direct Burial Aluminum Light Pole, 16 Foot Above Grade, 4 Inch Width, 0.125 Inch Wall Thickness. Item Number: 16A4SS125DB
Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.
Pole Shaft: 16 ft. height above ground, 4 in. square straight aluminum with 0.125 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 4 ft. Wire access is provided in. below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 5 Years.

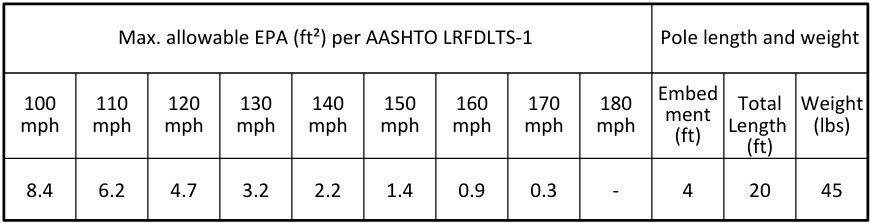

Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
- POLE HEIGHT:
- 16 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Square
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.125 Inch
- faq_category:
- aluminum-light-poles
- made_in_usa:
- true
- 5_year_warranty:
- true
