25 Foot Above Grade Square Fiberglass Direct Burial Light Pole, 4 Inch Wide

Item #
25SQ4FDB
Due to global resin shortages, this item has an estimated lead time of 16-20 weeks.
  • Black
$1,271.00

Get A Free Quote
25 Foot Above Grade Square Fiberglass Direct Burial Light Pole, 4 Inch Width. Item Number: 25SQ4FDB
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Material: Our commercial-grade square fiberglass poles are constructed of thermoset polyester resin containing "E" type fiberglass. The surface of the shaft is smooth and consists of a saturated polyester surfacing veil of 18-20 mils minimum thickness and a 10 mil resin layer. The resin is unsaturated polyester containing UV inhibitor and pigment throughout. 1.5 mil of urethane coating is applied to the surface of the pole shaft. The surfacing veil and structural fibers are saturated in a singular process with the same resin, ensuring molecular bonding between structural layers and the protective layer. Standard color is Black.

Benefits:
  • Lightweight for easy installation - 70% less heavy than steel.
  • Does not rust or corrode.
  • Dent resistant.
  • Non-conductive for safety purposes.

Direct Burial: This pole is designed to be embedded directly in to the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 5 feet below grade. Overall pole length including the embedded portion is 30 feet.

Warranty: 10 Years

Availability: This item has an approximate production lead-time of 4 to 5 weeks.

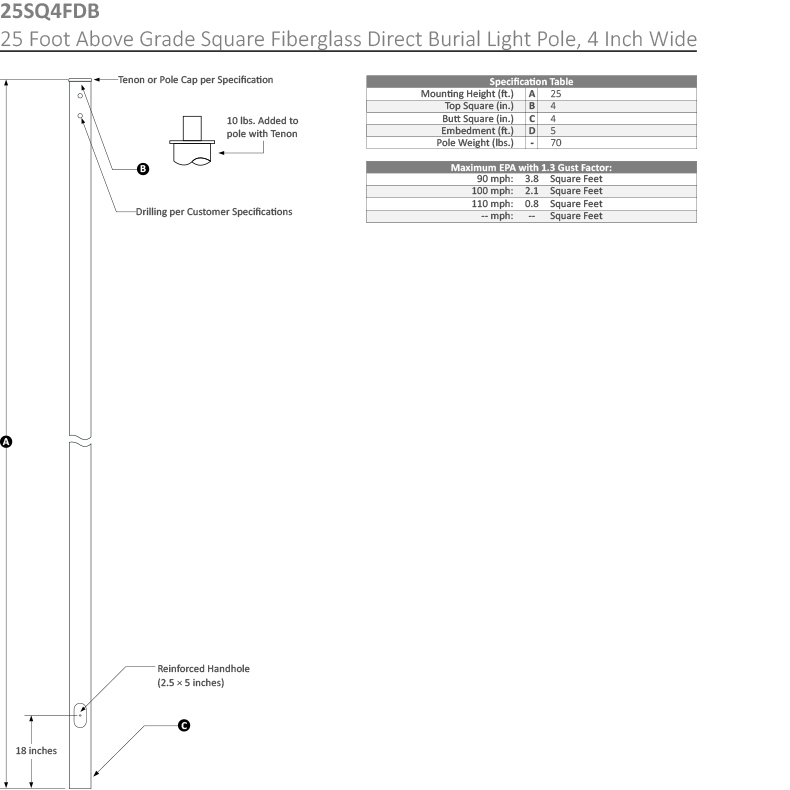

Characteristics:
Color:
Black
Above grade height: 25 feet
Bury depth: 5 feet
Overall Shaft Length: 30 feet
Weight: 70 pounds

EPA Ratings (sq. ft.):
80 mph: 5
90 mph: 3
100 mph: 1.5
120 mph: 0



POLE HEIGHT:
25 Foot
INSTALLATION TYPE:
Direct Burial
POLE SHAPE:
Square
WIDTH OR DIAMETER:
4 Inch
faq_category:
fiberglass-light-poles
Product Note:
Due to global resin shortages, this item has an estimated lead time of 16-20 weeks.
