25 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 6 Inch Diameter, 0.188 Inch Wall Thickness

Item #
25A6RT1881D4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat
  • Black Powder Coat
  • White Powder Coat
  • Gray Powder Coat
  • Green Powder Coat
$1,105.00

Request a Product Quote
25 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 6 Inch Diameter, 0.188 Inch Wall Thickness. Item Number: 25A6RT1881D4
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

  • Mounting height: 25 ft.
  • Wall thickness: .188 in.
  • Butt diameter: 6 in.
  • Top diameter: 4.5 in.
  • Base diameter: 9.75 in.
  • Bolt circle: 9-10 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 110 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 4 ft.
Maximum EPA:
  • 70 MPH: 8.8
  • 80 MPH:  6
  • 90 MPH:  4
  • 100 MPH: 2.9
  • 110 MPH: 2.2

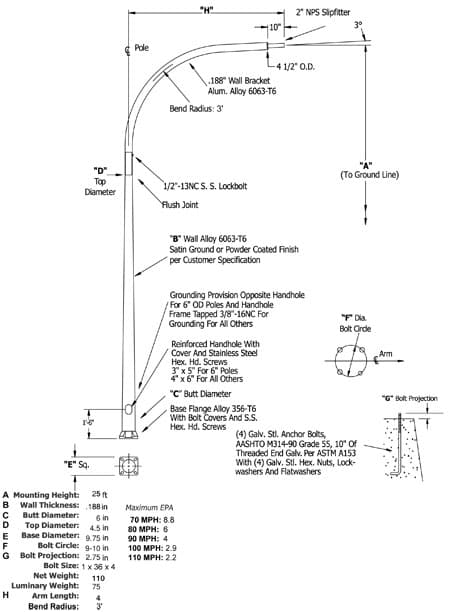

Dimensional Drawing:
