25 Foot Aluminum Street Light Pole with 6 Foot Davit Arm, 6 Inch Diameter, 0.188 Inch Wall Thickness

Item #
25A6RT1881D6
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat (+$60 per pole)
  • Black Powder Coat (+$60 per pole)
  • White Powder Coat (+$60 per pole)
  • Gray Powder Coat (+$60 per pole)
  • Green Powder Coat (+$60 per pole)
$1,986.00

Get A Free Quote
25 Foot Aluminum Street Light Pole with 6 Foot Davit Arm, 6 Inch Diameter, 0.188 Inch Wall Thickness. Item Number: 25A6RT1881D6
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

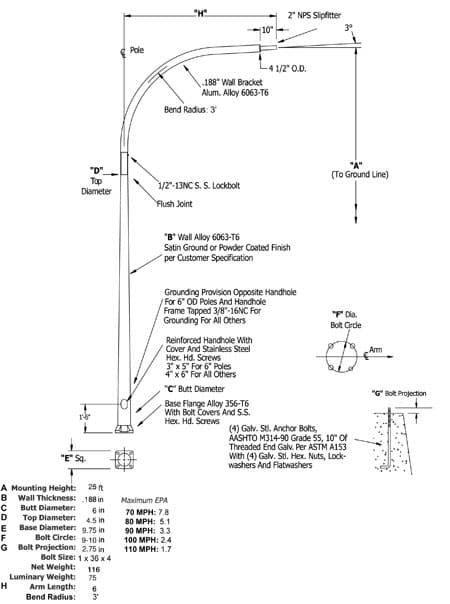

  • Mounting height: 25 ft.
  • Wall thickness: .188 in.
  • Butt diameter: 6 in.
  • Top diameter: 4.5 in.
  • Base diameter: 9.75 in.
  • Bolt circle: 9-10 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 116 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 6 ft.
Maximum EPA:
  • 70 MPH: 7.8
  • 80 MPH:  5.1
  • 90 MPH:  3.3
  • 100 MPH: 2.4
  • 110 MPH: 1.7


POLE HEIGHT:
25 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round Tapered
WIDTH OR DIAMETER:
6 Inch
WALL THICKNESS:
0.188 Inch
ARM LENGTH:
6 Foot
faq_category:
aluminum-light-poles
made_in_usa:
true
10_year_warranty:
true
