- Pole Top Options: A removable pole cap is provided if the pole is drilled for attaching light fixtures. The drill pattern and drill orientation needs to be provided by the customer unless Energy Light fixtures are used for the project. If tenon option is selected, a steel tenon will be provided. A 2 3⁄8 inch diameter tenon with 4 inch length is standard; however, the customer needs to confirm the appropriate tenon size required for the project.
- Pole Shaft and Height: 5 inch square 7 gauge commercial grade steel with minimum yield strength of 50,000 psi. Pole height is 30 ft.
- Handhole: 2.5” X 4.5” size handhole is located at 21 inches from the base. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
- Color: Dark Bronze.
- Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
- Bolt Circle: 11" (Bolt Circle Range 10 1/2"-12")
- Base Cover: Two-piece ABS plastic base cover is provided.
- Warranty: 5 Years.
- Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
with 1.3 Gust Factor

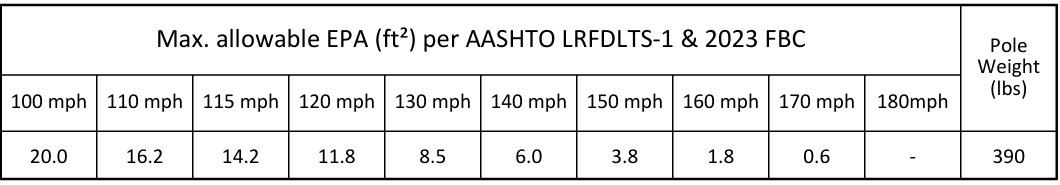

|90 mph||100 mph||110 mph||120 mph||Pole Weight (lbs)|
- POLE HEIGHT:
- 30 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- WIDTH OR DIAMETER:
- 5 Inch
- 7 Gauge
