35 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 8 Inch Diameter, 0.250 Inch Wall Thickness

Item #
35A8RT2501D4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat
  • Black Powder Coat
  • White Powder Coat
  • Gray Powder Coat
  • Green Powder Coat
$1,690.00

Get A Free Quote
35 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 8 Inch Diameter, 0.250 Inch Wall Thickness. Item Number: 35A8RT2501D4
  • Mounting height: 35 ft.
  • Wall thickness: .250 in.
  • Butt diameter: 8 in.
  • Top diameter: 4.5 in.
  • Base diameter: 11.25 in.
  • Bolt circle: 11-12 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 209 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 4 ft.
Maximum EPA:
  • 70 MPH: 16.1
  • 80 MPH:  11.3
  • 90 MPH:  8.1
  • 100 MPH: 6.1
  • 110 MPH: 4.7

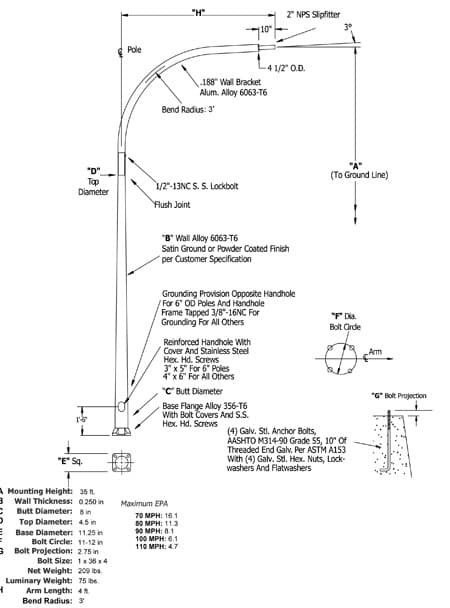

Dimensional Drawing:
