40 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 8 Inch Diameter, 0.250 Inch Wall Thickness

Item #
40A8RT2501D4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat (+$180 per pole)
  • Black Powder Coat (+$180 per pole)
  • White Powder Coat (+$180 per pole)
  • Gray Powder Coat (+$180 per pole)
  • Green Powder Coat (+$180 per pole)
$4,352.00

Get A Free Quote
40 Foot Aluminum Street Light Pole with 4 Foot Davit Arm, 8 Inch Diameter, 0.250 Inch Wall Thickness. Item Number: 40A8RT2501D4

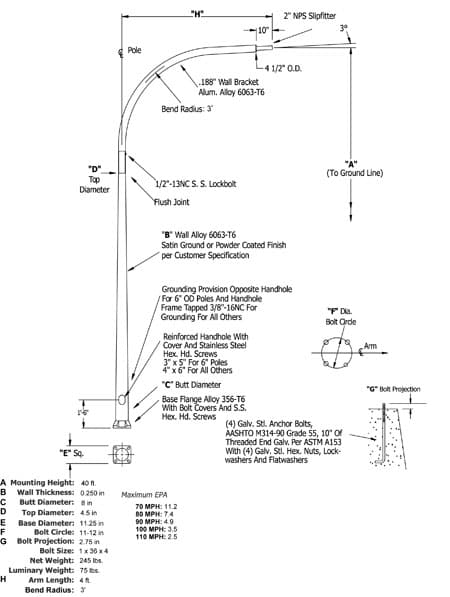

  • Mounting height: 40 ft.
  • Wall thickness: .250 in.
  • Butt diameter: 8 in.
  • Top diameter: 4.5 in.
  • Base diameter: 11.25 in.
  • Bolt circle: 11-12 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 245 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 4 ft.
Maximum EPA:
  • 70 MPH: 11.2
  • 80 MPH:  7.4
  • 90 MPH:  4.9
  • 100 MPH: 3.5
  • 110 MPH: 2.5

POLE HEIGHT:
40 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round Tapered
WIDTH OR DIAMETER:
8 Inch
WALL THICKNESS:
0.250 Inch
ARM LENGTH:
4 Foot
faq_category:
aluminum-light-poles
made_in_usa:
true
10_year_warranty:
true
