40 Foot Aluminum Street Light Pole with 10 Foot Davit Arm, 10 Inch Width, 0.188 Inch Wall Thickness

40 Foot Aluminum Street Light Pole with 10 Foot Davit Arm, 10 Inch Width, 0.188 Inch Wall Thickness

Item #: 40A10RT1881D10

Aluminum Pole 40A10RT1881D10 Dynamic View

Email This Page
Print This Page

Description

40 Foot Aluminum Street Light Pole with 10 Foot Davit Arm, 10 Inch Width, 0.188 Inch Wall Thickness. Item Number: 40A10RT1881D10

Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Mounting height: 40 ft.
Wall thickness: .188 in.
Butt diameter: 10 in.
Top diameter: 6 in.
Base diameter: 14 in.
Bolt circle: 14-15 in.
Bolt projection: 3.25 in.
Bolt size: 1 x 48 x 4 in.
Net weight: 260 lbs.
Luminary weight: 75 lbs.
Arm length: 10 ft.

Maximum EPA:

70 MPH: 10.3
80 MPH: 7.7
90 MPH: 5.9
100 MPH: 4.3
110 MPH: 2.9

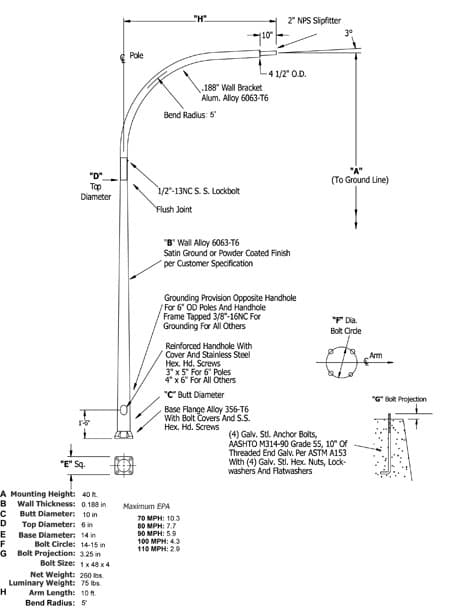

Dimensional Drawing:

Specifications: 40 foot aluminum street light pole with 10 foot davit arm. 10 inch shaft base with 0.188" wall thickness.
