40 Foot Aluminum Street Light Pole with 6 Foot Davit Arm, 10 Inch Width, 0.188 Inch Wall Thickness

Item #
40A10RT1881D6
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat
  • Black Powder Coat
  • White Powder Coat
  • Gray Powder Coat
  • Green Powder Coat
$2,085.00

Get A Free Quote
40 Foot Aluminum Street Light Pole with 6 Foot Davit Arm, 10 Inch Width, 0.188 Inch Wall Thickness. Item Number: 40A10RT1881D6
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

  • Mounting height: 40 ft.
  • Wall thickness: .188 in.
  • Butt diameter: 10 in.
  • Top diameter: 6 in.
  • Base diameter: 14 in.
  • Bolt circle: 14-15 in.
  • Bolt projection: 3.25 in.
  • Bolt size: 1 x 48 x 4 in.
  • Net weight: 260 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 6 ft.
Maximum EPA:
  • 70 MPH: 15.2
  • 80 MPH:  10.8
  • 90 MPH:  7.6
  • 100 MPH: 5.6
  • 110 MPH: 4

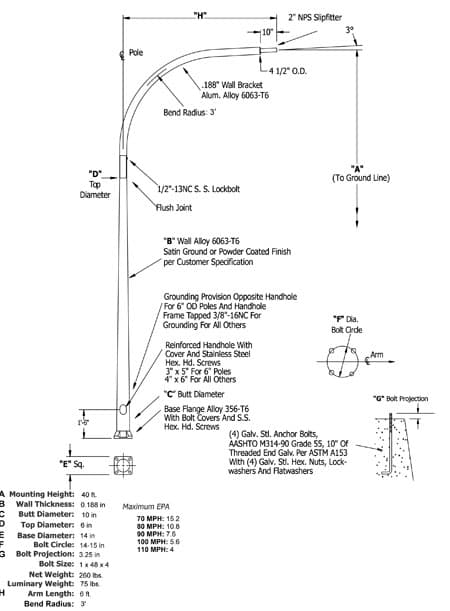

Dimensional Drawing:
