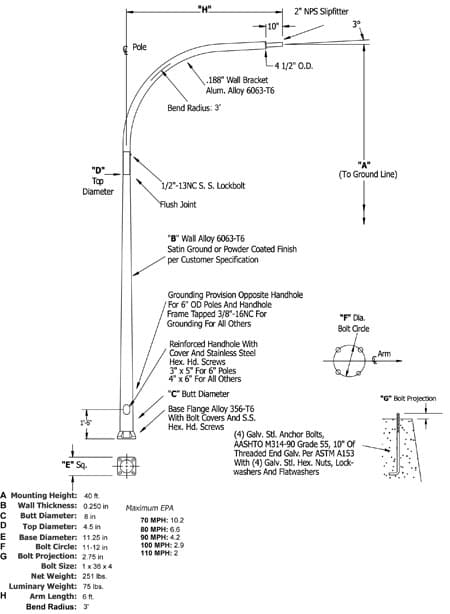

40 Foot Aluminum Street Light Pole with 6 Foot Davit Arm, 8 Inch Diameter, 0.250 Inch Wall Thickness. Item Number: 40A8RT2501D6
Pole Shaft: The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: Reinforced, 4" X 6" curved Cast Aluminum Frame handhole with cover is located at 18 inches from the base. Ground lug is included.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. White, Black, Gray colors are provided at no extra charge. Other colors and custom color options are available at a surcharge.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 1 Hex Nut, 1 Lock Washer and 1 Flat Washer. Energy Light, Inc. recommends leveling shims instead of leveling nuts. No grouting is required with leveling shims. Shims are available at a surcharge. An actual size paper anchor bolt template is provided.
Bolt Circle Range: 11"-12".
Base Style: 4 Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws.
Other Options: The following options are available: Vibration damper, custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handhole and UL compliant handholes.
Warranty: 5 Years.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
Maximum EPA:
- 90 MPH: 11.6
- 100 MPH: 8.0
- 120 MPH: 4.8
- 130 MPH: 3.4
- POLE HEIGHT:
- 40 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- Round Tapered
- WIDTH OR DIAMETER:
- 8 Inch
- WALL THICKNESS:
- 0.250 Inch
- ARM LENGTH:
- 6 Foot
- faq_category:
- aluminum-light-poles
- made_in_usa:
- true
- 5_year_warranty:
- true
