1 Inch Anchor Bolt to 3/4 Inch Base Plate Adapter

Item #

Get A Free Quote
Allows poles with bases designed for 3/4 inch anchor bolts to fit foundations with 1 inch anchor bolts.
Highlights: Free Shipping
Product Description: Converts 1 inch anchor bolts to work with poles requiring 3/4 anchor bolts.
  • Solves anchor bolt alignment problems quickly and safely
  • Works with poles using 1 inch anchor bolts
  • Allows an increase or decrease of a bolt circle of up to 5 inches (per parameters below)
  • Set includes 4 adapters with nuts and washers
Product Specifications:
Maximum Pole Height 25 feet
Maximum Pole Weight—Without Lights and Brackets 200 lbs.
Maximum Weight of Lights and Brackets 150 lbs.
EPA @ 100mph Using Center Hole 11
EPA @ 100mph Using Outer Hole 5

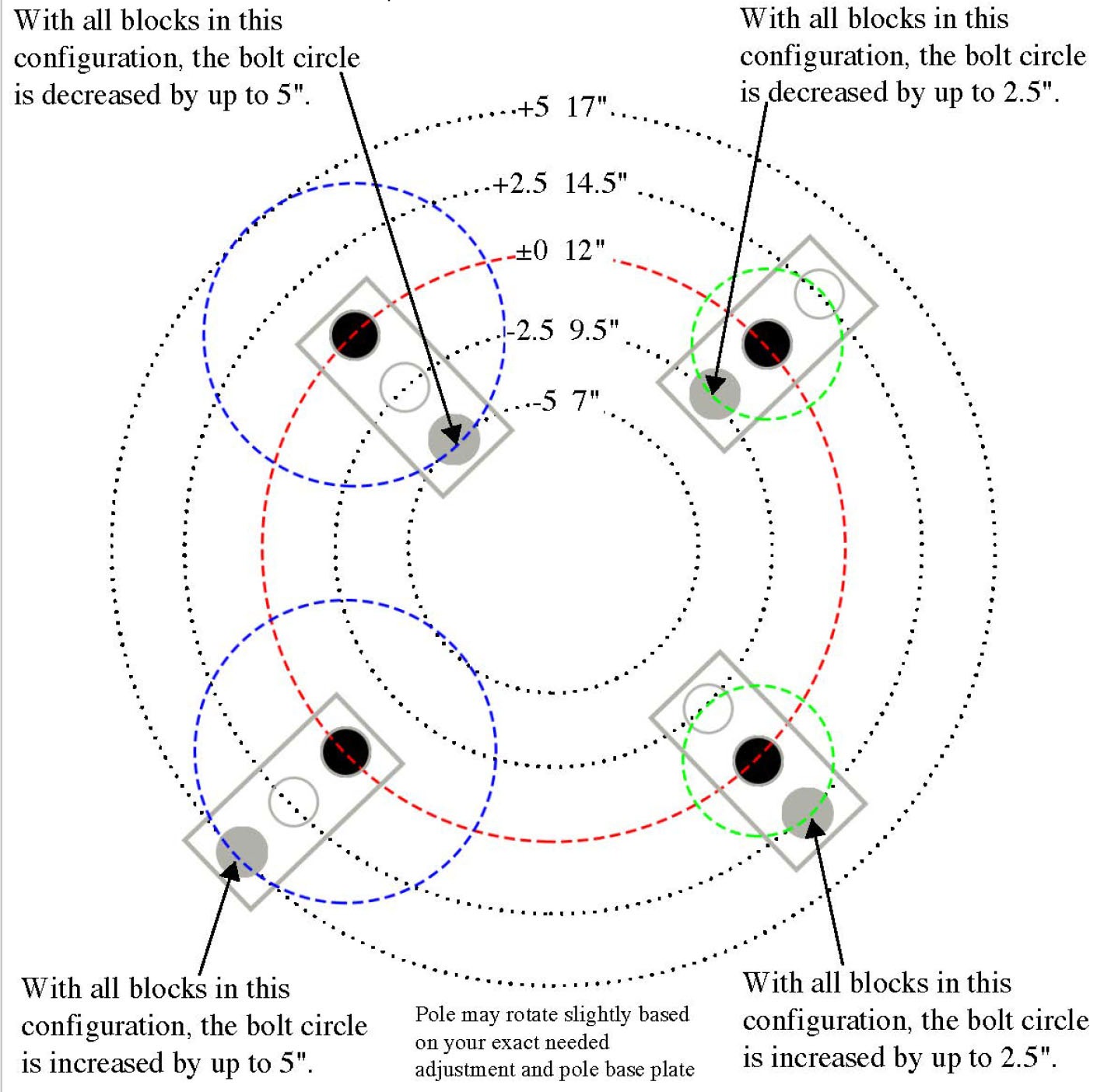

ABA175 Bolt Circle

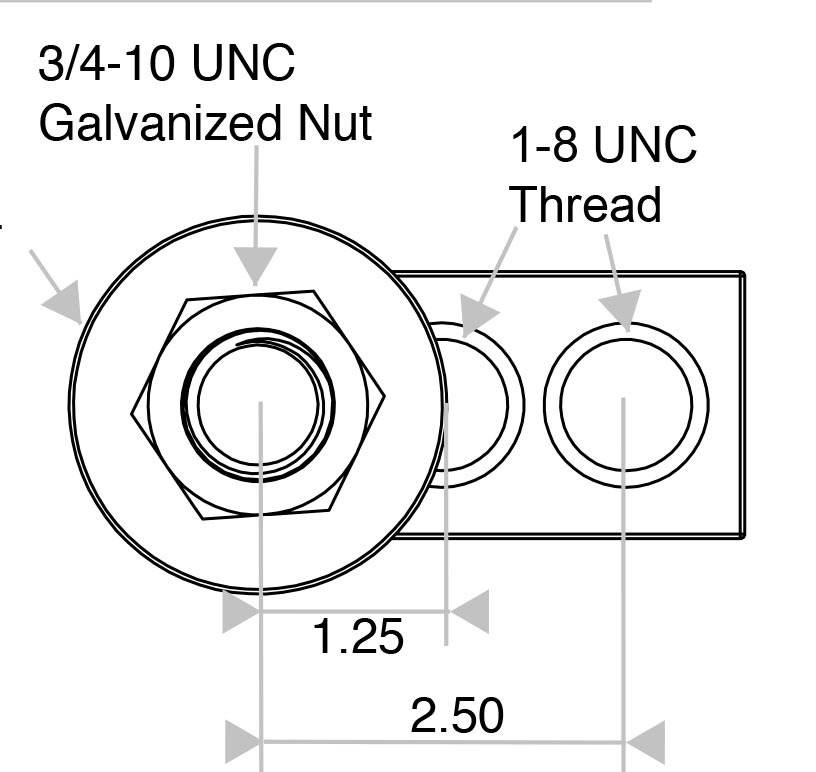

ABA175 Galvanized Nut

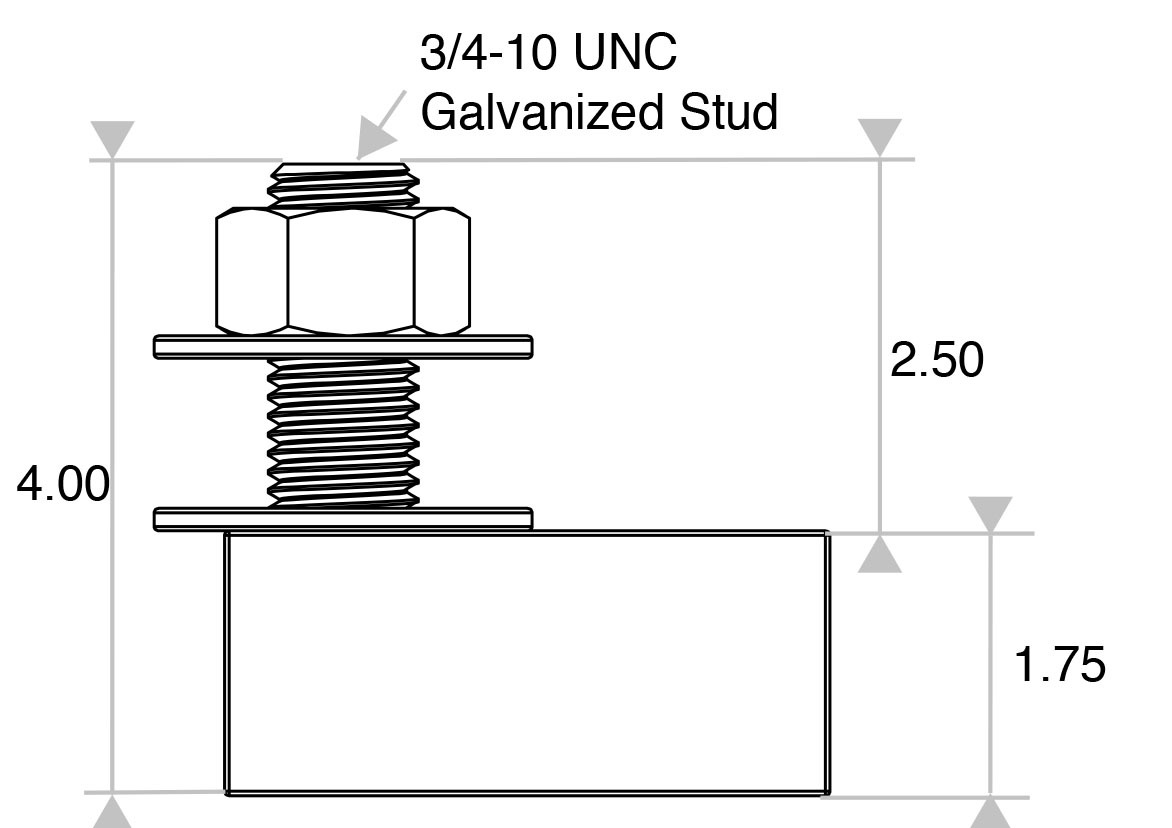

ABA175 Galvanized Stud
Specification Sheet: (If this field is filled out, please copy & paste to field below.):
