1 Inch Pole Base Anchor Bolt Adapters

Item #
ABA10
$474.00

Get A Free Quote
Highlights: Free Shipping
Product Description: Allows poles with 1 inch anchor bolts to fit foundations with different bolt patterns.
  • Solves anchor bolt alignment problems quickly and safely
  • Works with poles using 1 inch anchor bolts
  • Allows an increase or decrease of bolt circle up to 5 inches (per parameters below)
  • Set includes 4 adapters with nuts and washers
Product Specifications:
Maximum Pole Height 30 feet
Maximum Pole Weight—Without Lights and Brackets 400 lbs.
Maximum Weight of Lights and Brackets 150 lbs.
EPA @ 100mph Using Center Hole 15
EPA @ 100mph Using Outer Hole 5

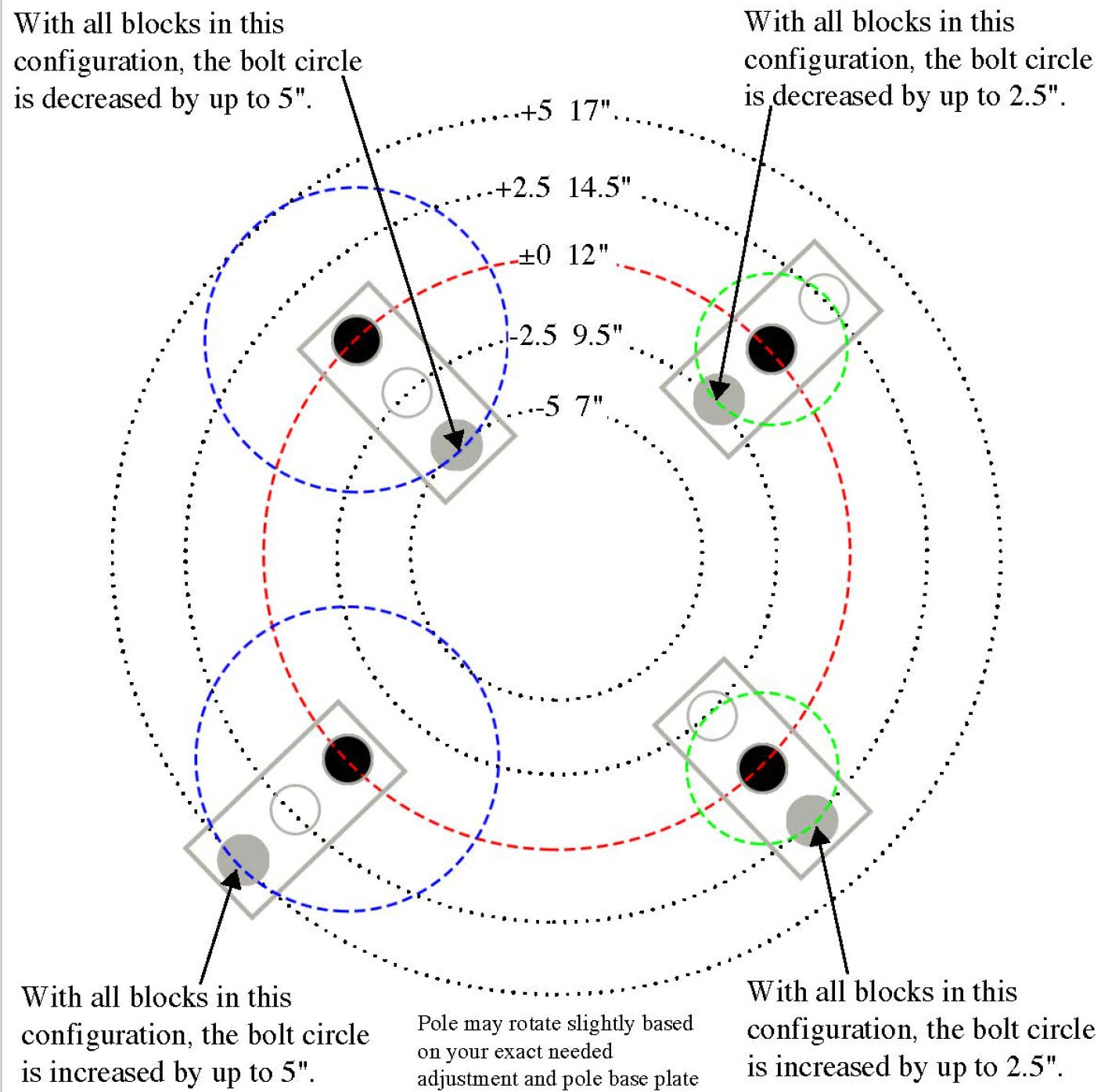

ABA10 Bolt Circle

ABA10 Galvanized Nut

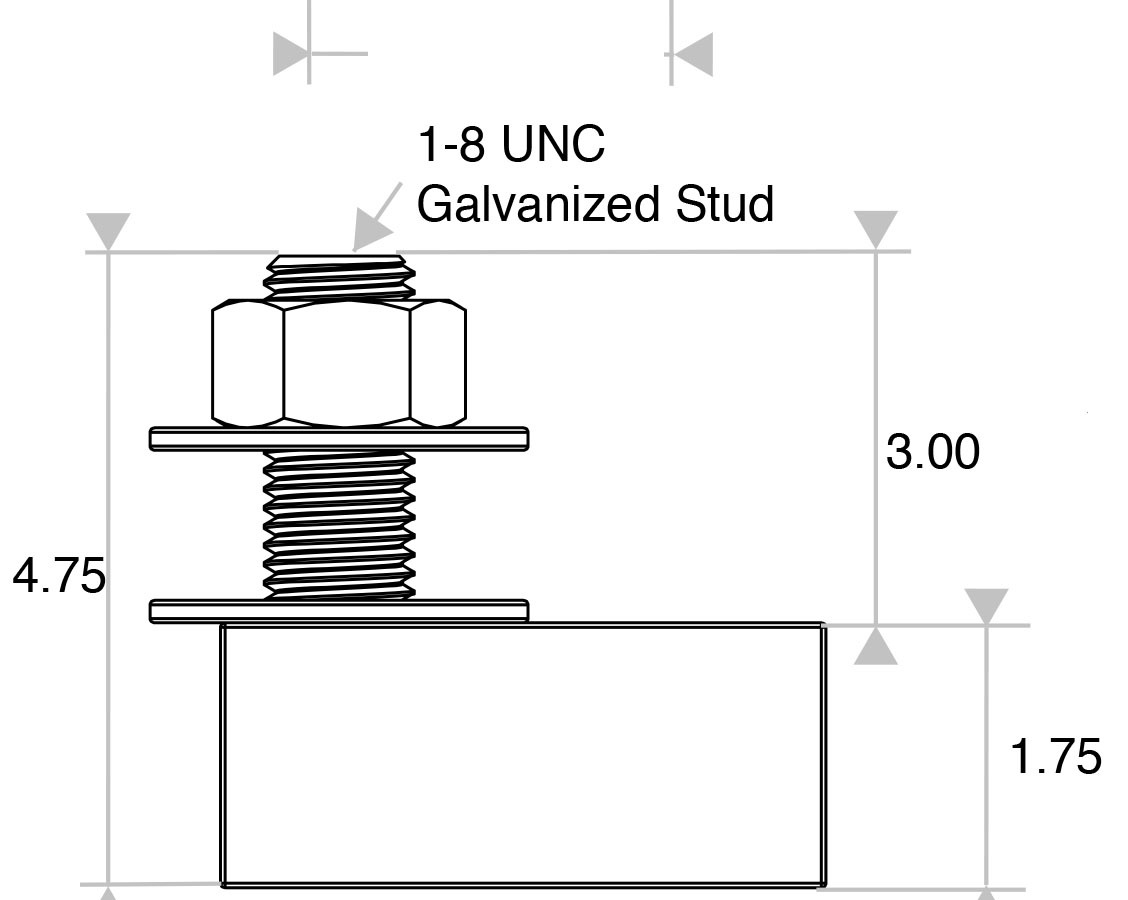

ABA10 Galvanized Stud
