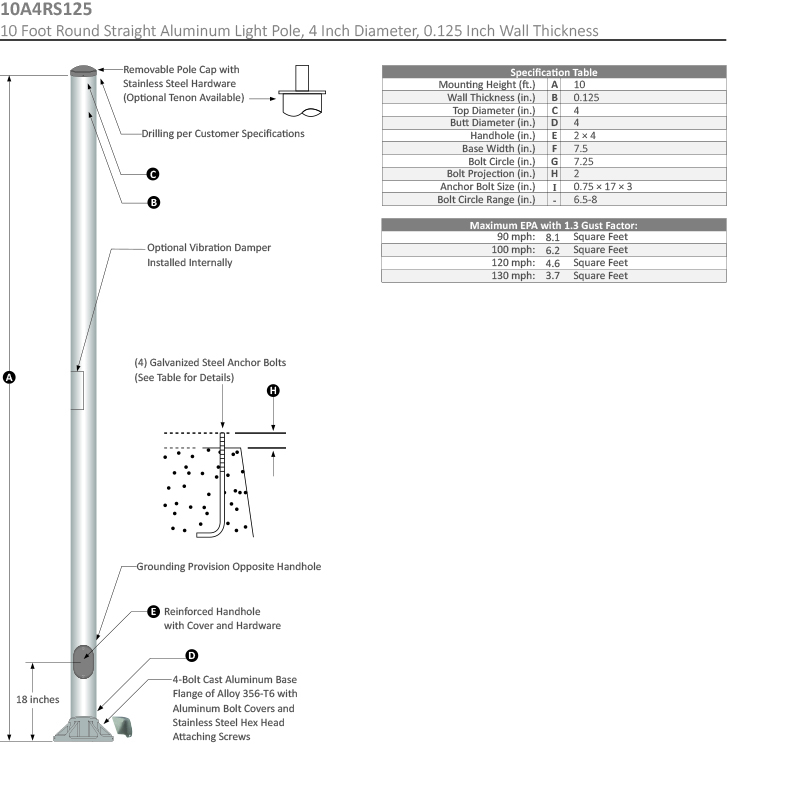

Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 inch or 3 inch. Both tenon options are 4 inches long.
Pole Shaft: The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2" X 4" size handhole with cover is located at 18 inches from the base. Ground lug is included.
Finish: Commercial grade, super durable powder coat finish. Black is standard color. Dark Bronze, White, Gray colors are provided at no extra charge. Other finishes are available with extended lead times and surcharges.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 1 Hex Nut, 1 Lock Washer and 1 Flat Washer. Energy Light, Inc. recommends leveling shims instead of leveling nuts. No grouting is required with leveling shims. Shims are available at a surcharge. An actual size paper anchor bolt template is provided.
Bolt Circle Range: 6 1/2"-8".
Other Options: The following options are available with extended lead times and surcharges: Vibration damper, custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handhole and UL compliant handholes.
Warranty: 10 Years.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
- POLE HEIGHT:
- 10 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.125 Inch
