Square Direct Burial Aluminum Light Pole 14 Foot Above Grade, 4 Inch Wide, 0.188 Inch Wall Thickness

Item #
14A4SS188DB
  • Dark Bronze Powder Coat (Standard)
  • Black Powder Coat +$60
  • White Powder Coat +$60
  • Gray Powder Coat +$60
$736.00

Get A Free Quote
Square Direct Burial Aluminum Light Pole, 14 Foot Above Grade, 4 Inch Width, 0.188 Inch Wall Thickness. Item Number: 14A4SS188DB

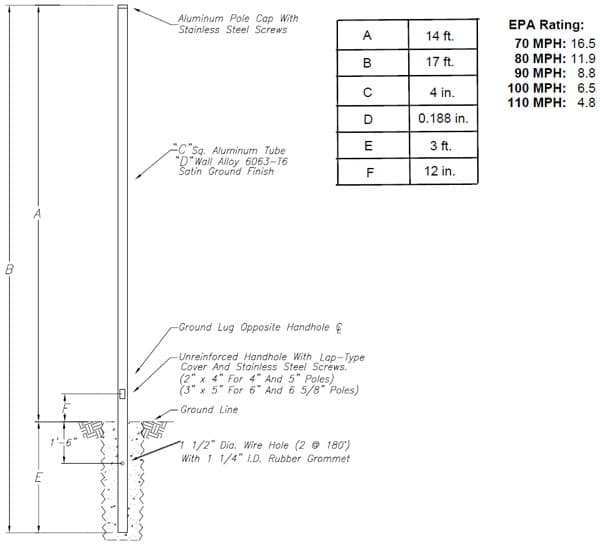

Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in.. long.
Pole Shaft: 14 ft. height above ground, 4 in. square straight aluminum with 0.188 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 3 ft. Wire access is provided 18 in. below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 10 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.





POLE WIND RATING (EPA)

with 1.3 Gust Factor

POLE LENGTH AND WEIGHT
70 mph 80 mph 90 mph 100 mph  110 mph Embedment (ft) Total Length (ft) Weight  (lbs)
16.5 11.9 8.8 6.5 4.8 3 17 58

POLE HEIGHT:
14 Foot
INSTALLATION TYPE:
Direct Burial
POLE SHAPE:
Square
WIDTH OR DIAMETER:
4 Inch
WALL THICKNESS:
0.188 Inch
faq_category:
aluminum-light-poles
made_in_usa:
true
10_year_warranty:
true
