This is a made-to-order item. We will contact you with current lead-time within one business day of order placement.

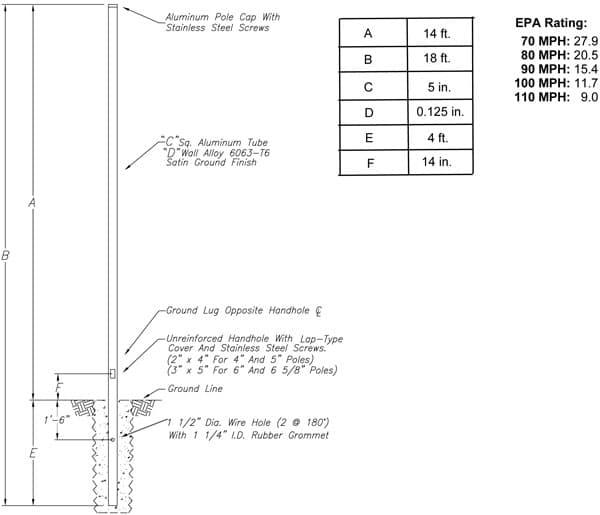

This 5 inch Square Direct Burial light pole made from aluminum alloy 6063-T6, is 14 feet high above grade with a wall thickness of 0.125 inches and maximum EPA rating of 9 at 110 mph. The overall pole height including the embedded portion is: 18 feet. To see the full specifications for our 14 foot above grade 5 inch square direct burial aluminum light pole - 0.125 inches. please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.
This pole is designed to be embedded directly into the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 4 feet below grade.
Pole Drilling Options
We can drill our aluminum light poles to your specifications at no extra charge. We offer such a large variety of drilling options that should you need anything other than our standard drill template shown in the images above and different drill orientation (also shown above), please contact one of our engineers at 1-800-443-8254 or e-mail them at: [email protected].
We provide 5 powder-coat colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.
We offer an extensive list of OEM accessories for our aluminum light poles ranging from GFI receptacle outlets to vibration dampeners. In addition, we do not charge extra for cutting our poles to custom lengths in case what we offer requires customization.
10 Year Warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 10 year warranty.
- POLE HEIGHT:
- 14 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- WIDTH OR DIAMETER:
- 5 Inch
- WALL THICKNESS:
- 0.125 Inch
